Wachsen Cloning Cart

• Features 4 growing levels with 4 light shelves fitted with Philips T5 fluorescent lighting (4 fluorescent per fixture)
• 4 cutting levels + 1 top shelf for storage
• Adjustable height in 1 1/4" increments
• Spill proof ABS trays included
• Hold 1152 to 1664 clones (depending on cloning method)
• Additional shelves available

• Features 4 growing levels with 4 light shelves fitted with LED lighting
• 4 cutting levels + 1 top shelf for storage
• Adjustable height in 1 1/4" increments
• Spill proof ABS trays included
• Hold 1152 to 1664 clones (depending on cloning method)
• Additional shelves available

• features 4 growing levels
• 4 cutting levels + 1 top shelf for storage
• Adjustable height in 1 1/4" increments
• 8 spill proof ABS trays included (two per level)
• Hold 1152 to 1664 clones (depending on cloning method)
• Additional shelves available

Dimensions
Cart dimensions: 27.95" (71cm) (W) x 53" (134.62cm) (L) x 61" (155cm) (without casters) - 67" (170.2cm) (with casters) (H)
Cart weight: 130 lbs with ABS trays - 110 lbs without trays

Cable jumper for Wachsen T5 light fixture

Power cable for Wachsen T5 light fixture

Polypropylene (PP) Trays that can be used with Wachsen Cloning Cart.

Outside dimensions: 24.4” (62cm) (W) x 27" (68.6cm) (L) x 1.5” (3.8cm) (H)
Inside dimensions: 23.03" (58.5cm) (W) x 25.39" (64.5cm) (L) x 1.25” (3.18cm) (H)
Weight: 3.15 lbs (1.43 kg)

Save valuable floor space in your production facility with this Philips T5 lighting system specially designed for grow carts.

Note: Cable jumper, Power cable and T5 Fluorescents are not included.

Specifications

• Cap-Base: G5
• 120-277V
• Life to 50% failures preheat (nom): 30,000h
• Features: High Output Alto
• Color code: 865 (CCT of 6500K)
• Luminous flux (nom): 4650 lm
• Luminous flux (rated) (nom): 4200 lm
• Luminous efficacy (@max lumen, rated)(nom): 86 lm/W
• Correlated color temperature (nom): 6300K
• Luminous efficacy (rated)(nom): 77 lm/W
• Color rendering index: Max: 85 - Min: 80 - Nom: 82
• Power (rated)(nom): 54.1 W
• Lamp current (nom): 0.455 A
• Design Temperature (nom): 35°C
• Dimmable: Yes
• Warranty: 2 years
• Fixture dimensions: 22.5" (57.15cm) (W) x 48.88" (124.14cm) (L) x 2.13" (5.4cm) (H)
• Fixture weight: 22 lbs (9.98 kg)
• Shipping dimensions: 23.5" (59.69cm) (W) x 50" (127cm) (L) x 3.5" (8.89cm) (H)
• Shipping weight: 24 lbs (10.89 kg)

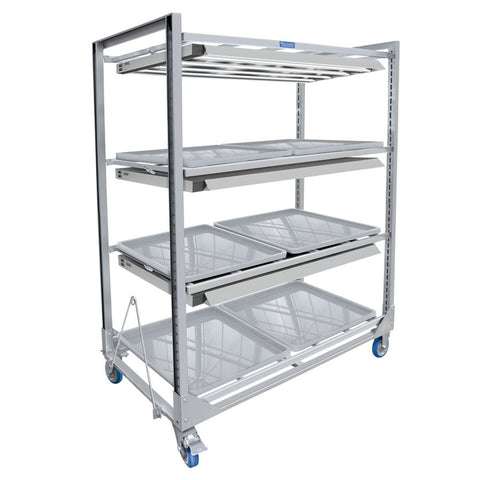

Our vertical cloning system includes three T5 fluorescent 6300K grow light fixtures.

• Features 3 growing levels with 3 light shelves fitted with T5 fluorescent lighting (4 fluorescents per fixture)
• 3 cutting levels + 1 top shelf for storage
• Adjustable height in 1 1/4" increments
• 6 spill proof ABS trays included (two per level)
• Hold 864 to 1248 clones (depending on cloning method)
• Additional shelves available

Fixture specifications

• Cap-Base: G5
• Life to 50% failures preheat (nom): 30,000h
• Features: High Output Alto
• Color code: 865 (CCT of 6500K)
• Luminous flux (nom): 4650 lm
• Luminous flux (rated) (nom): 4200 lm
• Luminous efficacy (@max lumen, rated)(nom): 86 lm/W
• Correlated color temperature (nom): 6300K
• Luminous efficacy (rated)(nom): 77 lm/W
• Color rendering index: Max: 85 - Min: 80 - Nom: 82
• Power (rated)(nom): 54.1 W
• Lamp current (nom): 0.455 A
• Design Temperature (nom): 35°C
• Dimmable: Yes
• Fixture dimensions: 22.5" (W) x 48.875" (L) x 2.125" (H)
• Fixture weight: 22 lbs

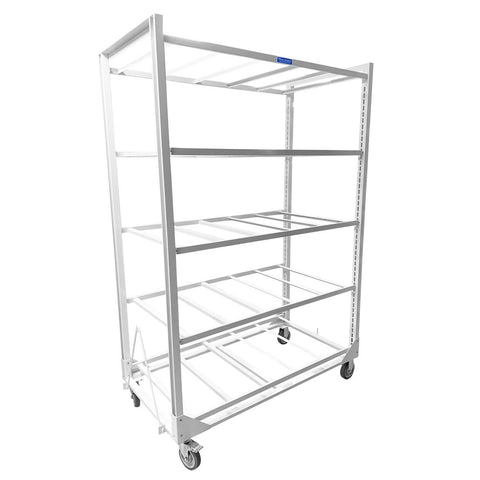

As an alternative to their stainless-steel frame, the Wachsen cloning cart is available in a four-level model for producers who require even more vertical space. Wachsen brand cloning carts prioritize compliancy as they are engineered to surpass baseline requirements and protect young plants from equipment cross-contamination. This steel cart model features a duplex coating that is both powder-coated and galvanized. The fourth level maintains Wachsen’s characteristic record of medical-grade compliance with space ratios between shelves to promote large scale consistency through air circulation and smooth maneuverability. Carts can be fitted with any combination of grow lights, trays and domes to fulfill your needs.

Design dimensions are well suited to fit food-grade Wachsen ABS plastic trays (sold separately). We recommend complimenting the four-level Wachsen cloning rack with their wide, sure-grip trays to prevent residual liquids from spilling onto medical crops below.

Our vertical cloning system includes three Fluence Razr3 LED Grow Lights.

• 3 growing levels/ light shelves fitted with Fluence Razr3 LED lighting
• Adjustable height in 1 1/4" increments
• 6 spill proof ABS trays included (two per level)
• Hold 864 to 1248 clones (depending on cloning method and/or number of shelves)
• Additional shelf height
• Removable grow light fixtures for easy sanitation
• Removable trays fro product loading
• Additional level option available
